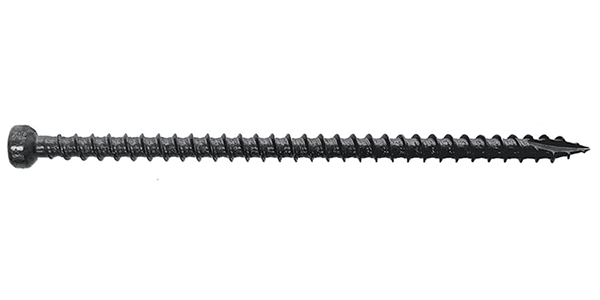

MiTek’s new ProSeries WSTS Truss/Stud screw

Available in two lengths, and designed for truss, rafter, and stud connections, the WSTS screw is developed to provide uplift resistance and lateral load resistance for the following connections: Truss-to-top-plate, rafter-to-top-plate, top-plate-to-stud, stud-to-bottom-plate. The WSTS Truss/Stud screw is tested in accordance with ICC-ES AC233 and AC13, and meets 2015 and 2018 IRC and IBC code requirements. The WSTS Truss/Stud screw offers a “reverse thread angle” on opposite ends of the screw for greater resistance to withdrawal. The WSTS Truss/Stud screw package includes an installation angle tool that makes proper installations easier. The installation angle tool is also removable so the bit can be used with or without the device. The screw comes in two lengths: 4-1/2″ for stud-to-bottom plate connections, and 6″ length for connections thru the double top plate.
www.mitek-us.com
